Features
The RFID Tunnel is specifically designed for use in asset tracking. Each Tunnel includes four WAVE® antennas. This is an easy to install, plug-and-play system that uses multiple beams to locate and read large numbers of tags simultaneously.
Sales Representatives: [email protected]
Product Catalog
WAVE® Antenna
Specifications
| Part Number | XRBS-T3 |
|---|---|
| Dimensions | Exterior: 81 cm(L) × 60.8 cm(W) × 66 cm(H) Interior: 60 cm(L) × 60.8 cm(W) × 55.5 cm(H) |
| Weight | 14 kg |
| Operating Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Frequency Range | 902 MHz to 928 MHz |
| Gain | 5.5 dBi |
| Impedance | 50 Ω |
| Polarization | Multi-linear |
| Maximum Input Power | 10 W |
| Beamwidth | 360° |
| Connector | TNC reverse polarity |

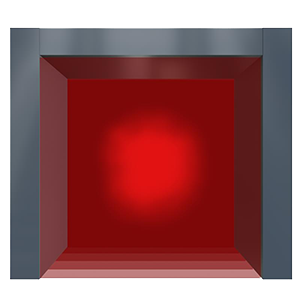

Antenna Radiation Pattern
WAVE® antennas are designed to uniformly illuminate a volume of space. When installed in pairs, the antennas complement each other and provide spatial, direction-of-arrival, and polarization diversities throughout the volume.
